Charles Barry Junior, 1869

Dulwich Common, SE21 7LD

Barry Buildings: 1869. Grade II* listed. Palladian symmetrical plan, in terracotta and stone. Extensively refurbished 2017-2018. New Science Building 2016. Grimshaw Architects. RIBA National Award. Home to 'James Caird' boat.

Getting there

Tube

Brixton

Train

West Dulwich, Gipsy Hill, Tulse Hill, North Dulwich

Bus

P4, P13, 3, 201

Additional travel info

Brixton is the nearest tube and the No 3 from there will take you directly to West Dulwich Station which is then a very short walk.

Access

Facilities

Accessibility notes

We will provide ramps and a lift in the Barry Buildings for visitors with accessibility requirements.

What you can expect

As we are running tours, we will have seating provided for those who might need to sit during the talking points.

About

Charles Barry Junior (1823-1900)

Charles Barry Junior (1823-1900) was the eldest son of Sir Charles Barry, the architect of the Palace of Westminster, and was his father’s General Superintendent at the Palace for two years, designing some of the ornamentation on the Clock Tower. He succeeded his father (who had designed the Old Grammar School in Gallery Road) as Architect and Surveyor to the Dulwich College Estate in 1858, and was in turn succeeded by his son Charles Edward Barry on his death. Barry was President of the Royal Institute of British Architects from 1876-9, and his prize of the Gold Medal in 1877 cited two particular works: the New College at Dulwich, and the Piccadilly façade and the forecourt of the Royal Academy at Burlington House, with the premises of the learned societies.

Barry was responsible for designing two churches on the Estate: St Peter’s, Lordship Lane (with some fine red brick and terra cotta roundel work in the interior) and St. Stephen’s, College Road, as well as some villas and railway buildings, including the viaducts at Herne Hill. Elsewhere Barry designed nine churches and several country mansions.

The New College

Designed by Charles Barry, Junior and erected 1866-70.

Palladian ground-plan – Centre Block with wings; Palladian relation of solids to voids, as in a palazzo and in filial homage to his father’s work in St. James’s: the Traveller’s club, the Reform Club and Bridgewater House, all with elaborate cornices.

Buildings now bereft of tall red and white ‘streaky bacon’ chimneys and Mason’s red patent tiles on roof. Bronze lamp-standards at front doors of Main Elevation gone. Cloisters glazed in 1960s.

Barry was given a free hand by the governors as to style. He called it ‘North Italian of the Thirteenth Century’. Hybrid and eclectic, incorporating memories of Barry’s Grand Tour and quotations from the Palace of Westminster.

Great Hall

Inside a reference to Westminster Hall, and also outside by the gables at each end. Main source is the Charterhouse at Pavia; red brick and terra cotta with finials, turrets and cupola. Ruskin called the Charterhouse at Pavia ‘painful and pitiful’, ‘exhausting and encrusting’, reminding him of inlaid cabinets and velveted caskets. Even Barry’s younger brother Edward Middleton Barry in a professorial Royal Academy lecture called the Charterhouse ‘fantastic’ and ‘not to be commended’. Critic in Building News, 1869, said the cloisters were too low, and made fun of Barry’s roofscape with its ‘fussy erections’: ‘Chinese pagodas are temperate in comparison with the little pearshaped roofed temples set around with queer terminals, like bottles in a cruet stand’. However, the Campanile itself and the ironwork to the Gate were admired.

Lantern

Over Great Hall copied from King Edward VI Grammar School at Birmingham (now demolished); turrets with imbricated tiles a Barry family motif, as at Halifax Town Hall. Sequence of tower, lantern and Clock Tower in homage to the Palace of Westminster. His father had died a few years before the design; thus quotations are hieroglyph in memorial.

Clock Tower

In general derives from campaniles of North Lombardy, and in particular S. Maria della Carita in Venice, now demolished, but visible in The Stonemason’s Yard by Canaletto at the National Gallery. Chapel shown on early designs, out towards the Clump from Great Hall on W.–E. axis (never built).

Terra cotta

Red, buff or pale blue-green from J. M. Blashfield of Stamford. Panel below great window to Great Hall on east elevation of Centre Block impressed with Blashfield’s name, below breast of dragon. Barry declared in a lecture (1868): “I studied and admired the brick and terra cotta buildings of Milan, Florence, Verona, Vicenza, Pavia, Siena and other old towns of North Italy, and I resolved that, if ever opportunity should offer, I would endeavour to use the material in England with as much of the old spirit as my powers would enable me to realise”.

Roundels presumably chosen by the Master, Alfred Carver, and designed (also in some cases moulded) by Barry: worthies, classical, Renaissance and (a few) modern (philosophers, scientists, writers, Lord Macaulay; Apollo, the Muses; female characters from Shakespeare).

Barry Buildings Internal

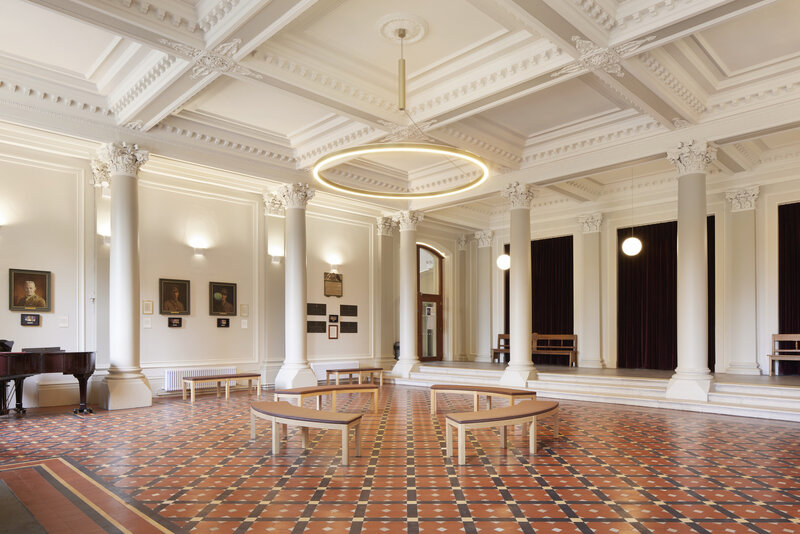

Lower Hall: rather heavy neo-Classical style, such as at Kensington Palace Gardens mansions worked on by Barry in his youth. Whimsical Corinthian capitals with protomai of leopard heads and wings to four corners.

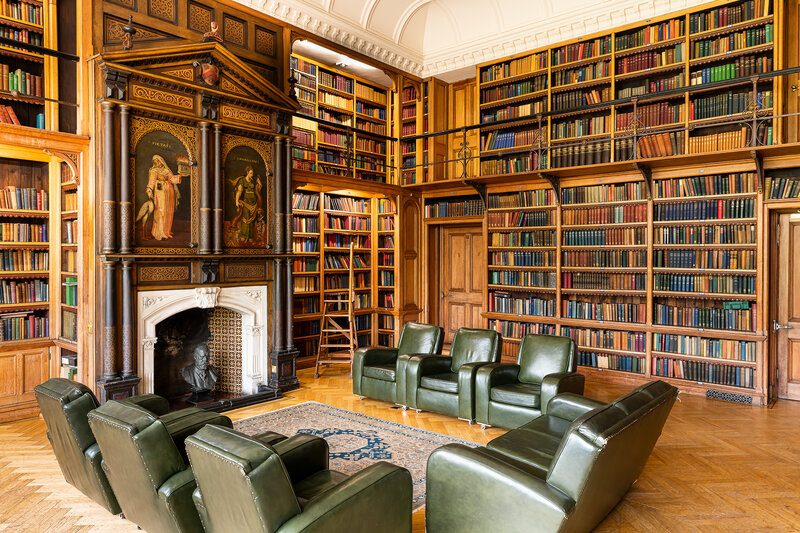

The Masters’ Library: ceiling a restoration after bombing of 1944 which destroyed C. E. Barry’s Science Block. Panels above fireplace from Queen Elizabeth’s state barge, purchased by Edward Alleyn on 19 December, 1618: ‘all ye upper part off ye quenes barge £2.2.6’.

Great Hall: 92 x 43 ft. and top of wagon roof 50 feet. Pillars of Devon marble; pedestals of cream and light green terra cotta. Double hammer-beam roof. Barrel vault of wagon roof copied from San Fermo Maggiore in Verona on top. Wyverns on hammer-beams carry shields. Spandrels with College arms. Some of armorial stained glass destroyed in 1944. Dais originally lower, and organ case gone.

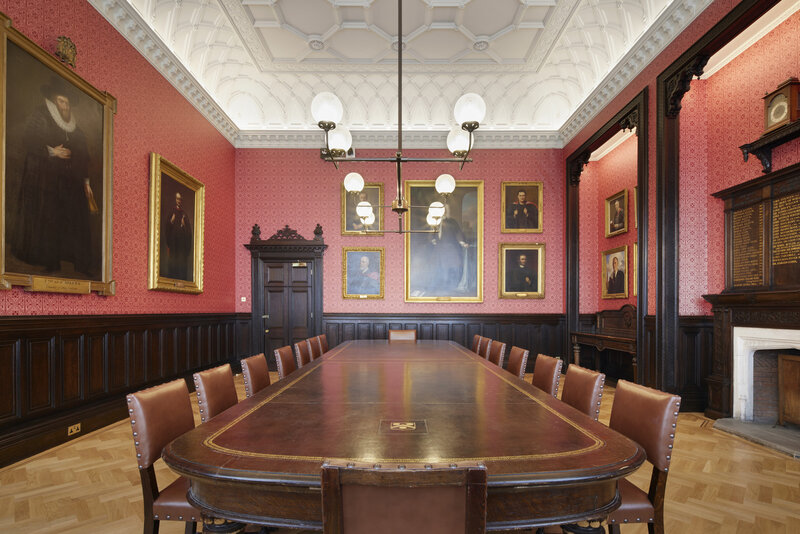

Board Room: fine ceiling copied from his father’s Clumber Park (now destroyed).

Refurbishment 2017-2018

The exterior terra cotta stonework, and the wooden Lantern were extensively repaired and restored in 2017-18, recapturing the freshness of Barry’s original and the luminescence of the terra cotta in its ‘Dulwich glow’. (Architects: Julian Harrap.) 50 classrooms in the North and South Blocks were also sympathetically restored and re-presented, as far as later modifications permitted, to their original grandeur and spaciousness whilst simultaneously modernising the facilities. (Architects: Barr Gazetas.)

Old, or ‘Memorial’, Library

Neo-Baroque, to design of Edwin T. Hall, 1902, as memorial to Alleynians killed in the Boer War. Statues of Justice, Mars and Minerva by H. C. Fehr. Pediment with triglyphs and guttae. Apsidal Rotunda originally reserved for prefects. Carver Room to east added in 1910.

War Memorial

The War Memorial, a twenty-nine-foot Latin cross, was designed by the Old Alleynian W. H. Atkin Berry FRIBA (1869-1932) and unveiled in 1921. It commemorates the 536 OAs who died in the First World War and is flanked by two stele which list the 339 who died in the Second World War and conflicts since 1945. Memorial flagstones in front of the Cross are those OAs awarded the Victoria Cross in the First World War. They are replicas of those installed near their homes on the 100th anniversary of each award.

The Laboratory 2014-2016

The College’s third Science Building, replaces the post-war building which itself replaced the building designed by CE Barry, built in1908 and demolished by a direct hit by a V1 rocket in 1944. It was designed by Grimshaw Architects, completed in 2016 and awarded an RIBA National Award in 2017.

The Laboratory as “a home for Science and a venue for the Arts”, is an expression of the College’s commitment to dismantling the artificial divide between the two disciplines.

The first phase opened in April 2015 consisted of 18 fully equipped laboratories, three preparation rooms and the James Caird Hall. The second phase was completed in July 2016 with three laboratories for the Lower and Junior Schools, five adaptable ‘Informatics’ suites with free-thinking spaces for creative learning and cross-curricular collaboration, a seminar room with full video conferencing facilities, a versatile 250-seat auditorium and an outdoor piazza for recreation and performance.

In shades of terra cotta and concrete representing order in nature and the unity of learning, the recurring pattern of the façade connects The Laboratory with the rich colours of Barry’s iconic ‘New College’ while making its own statement. The building’s footprint wraps around two large internal spaces and is deliberately stepped back and placed in a setting which integrates with other buildings on the campus. A sympathetic planting scheme complements and enhances the sense of openness and space which is integral to the College’s landscape plan.

The building is designed to encourage inclusivity and accessibility to all forms of learning and cultures, with great emphasis on natural light, and access on every elevation.

The design intentionally provides flexible spaces which enable a variety of configurations and layouts to future-proof the building against developments in technology and teaching. The laboratories are light and airy ‘boxes,’ a simplistic design, with desk and work surfaces laid out in a matrix pattern capable of being adapted to different forms of teaching.

James Caird Hall: Home to Shackleton’s life boat: ‘James Caird’, from the Endurance expedition of 1914-16, in which Shackleton with five companions crossed 870 miles of Antarctic winter waters and then crossed icy mountain terrain in South Georgia to raise the alarm and seek help for the 22 men marooned on Elephant Island.

Cherry-wood lockers performing a mundane function for pupils connect with the external terra cotta tiles which reflect the colours of adjacent Barry buildings.

Auditorium: In addition to the opportunities for lectures, art exhibitions, assemblies and formal presentations, the George Farha Auditorium offers a space for small recitals and informal drama productions, as well as events and dining for up to 80 guests.

Two storeys high, the ground floor south wall is fully glazed with floor to-ceiling doors leading out onto an expansive piazza. Clad with vertical timber fins, the upper floor is glazed on the north side allowing views of the auditorium from the upper cloister beyond.

Exterior Façade – Peter Randall-Page RA: The artist, who had collaborated with Grimshaw’s on the Eden Project had already worked locally creating ‘Walking the Dog’ for the grounds of Dulwich Picture Gallery, designed the recurring ‘Dragon’s Curve’ pattern on the external cladding.

Using the Lindermeyer or L-system algorithm, Randall-Page replicated the growth processes of plants. It is a pattern that occurs across the sciences and has inspired composers and artists to replicate the beauty and rhythms of the natural order in their work. Here is consolidates the intrinsic relationship between art and science.

‘Exploded Paradigm (Inverted)’ –Conrad Shawcross RA
Embodying the symbiotic relationship between creativity and discovery, the Shawcross sculpture hanging in the James Caird Hall complements and draws on the spirit of endurance proudly represented by Sir Ernest Shackleton’s James Caird life boat, permanently exhibited at the heart of the Laboratory.

The sculpture builds on Shawcross’s work exploring Platonic solids and Conrad explicitly linked this commission to the 14 metre high sculpture on the plaza of the new Crick Institute at St Pancras. The finished work reflects the notion of a paradigm shift, understanding that in art and science we are often jolted forward into new ways of thinking and seeing.

Sustainability is a core principle in the design of The Laboratory and the building uses innovative, environmentally inexpensive and energy-efficient systems. A ‘Thermally Active Building System (TABS)’ uses borehole water extracted at 12.8 °C from 65m-120m below ground, running through the ceilings and soffits of the building to extract heat, with the water emptying into a second borehole 100m away from the first. This ‘Open Loop System’ uses ground source cooling rather than expensive and energy-inefficient air conditioning, automatically delivering cooling on demand for individual rooms within the building. PV (photovoltaic) Solar Panels are fitted on all available roof space generating some of the building’s electrical energy requirements.

Dulwich College Lower School Library

As part of the school’s historic progression of buildings along College Road, the library establishes the first phase of alma-nac’s ambitious reworking of the Junior and Lower School campus while embedding net zero principles at the core of the school community. Net zero carbon architecture is a long-held ambition of the school, having been targeted in the school’s 2011 masterplan. In response, the design of the library is informed by rigorous embodied and operational carbon analysis in combination with cost studies, leading to a hybrid structure of lightweight steel with composite steel and concrete floor decks.

In counterpoint to Dulwich College’s august 1869 red brick main building by Charles Barry Junior – and in conversation with Grimshaw’s 2016 Laboratory building – alma-nac’s pale brick library marks a new gatepost to the school estate in the Dulwich Village conservation area. The three-storey building replaces a single-level portacabin in use since 1998 with two open and airy library floors united by a double-height atrium. A third level set back from the main frontage and clad in scalloped precast panels provides ICT learning spaces and a robotics suite.

The new library establishes an independent identity and dedicated entrance for Lower School pupils aged 11–12 (year groups 7–8), defining a distinct neighbourhood within the ‘mini city’ of the wider school campus. Phase 2 of the project will creatively adapt and environmentally retrofit two adjoining post-war Austin Vernon & Partners buildings, establishing an open quadrangle of classrooms and collaborative learning spaces. Collectively the buildings will shelter an inner courtyard for play while also interacting with surrounding green landscape, including a learning allotment. The library’s double-height circulation will ultimately be extended across the campus by the addition of a new circulation spine to the north face of the main Lower School building, creating an intuitive flow of movement via generous and lofty cloisters.

With a friendly face and human-scale proportions, the Lower School library acts as welcoming reception to the future campus, actively engaging children in school years 7 and 8 with the central role of library research in education and in life. The College Road elevation’s mix of deep-set windows angled at 45 degrees and boldly punched rectangular openings communicates glimpses of the inner working life of the school while a chequerboard section of textured brickwork expresses the building’s vertical circulation core.

The library’s extended opening hours encourage children to use the space before and after school for homework and independent learning in an environment that provides direct physical and visual connections to play areas, the school’s central clock tower of the historic Barry building and surrounding playing fields.

Extrapolating the principle of double-height circulation established by the library, Phase 2 of the project will provide a new hall for the Junior School, a wellbeing centre for the whole College and a new arts wing of music, art and design technology classrooms.

The library will be made available to the local community for a wide range of events such as the Dulwich Literary Festival and more widely as part of the school’s commitment to the Southwark Schools’ Learning Partnership (SSLP). A community use agreement with Southwark Council established as part of the planning process formally recognises the arrangement.

A learning landscape for the 21st century

The school’s brief for the library called for a ‘non-sterile’ environment of robustly adaptable spaces where students can read, interact and learn in comfort. The space was also required to accommodate up to 100 people for gatherings for performance, music and social events. alma-nac’s flexible solution creates an environment where educators, students and visitors are encouraged to become co-learners and producers of knowledge as they engage in shared and individual activity.

At ground level the library anticipates a range of modes of learning and usage scenarios, with mobile book display shelves and furniture configurations adaptable to day-to-day group learning, lectures, debates and discussions. A threshold of quarry tiles and the slatted timber balustrade and underbelly of the mezzanine level invest a warm, robust and earthy materiality, echoing the timber-lined character of the Middle and Upper School’s historic Wodehouse Library. The gallery level provides further shelving and display areas for books, fitted carrels for quiet working, group working tables and reading nooks for concentrated study overlooking the school grounds, while the third level of ICT and robotics learning space is characterised by top-lit classrooms and exposed glulam roof beams.

Reinforcing the knowledge hub as the nexus of the campus, the two library levels are linked by a sculptural precast concrete spiral stair ‘carpeted’ in oak treads and risers and providing a full stop to the double-height circulation that will ultimately extend across the campus. A separate and generous top-lit stairwell also links the new building with the soon to be retrofitted Lower School, with lift access in an adjacent core ensuring the new spaces are fully accessible.

Co-design and using the building as a tool for learning

Central to the design development is alma-nac’s participatory approach, which directly engaged pupils, librarians, teaching staff, and the school estate team with the design and sustainability goals of the project. Influenced by the Baupiloton Method of participatory design, alma-nac staged a series of interactive workshops with pupils and staff to further inform the school’s strategic design brief. To spark dialogue among the young pupils about the design features they would like to see in their new buildings, the architects used visual prompt postcards depicting inspirational outdoor spaces, circulation, library and learning spaces from across the world. Direct outcomes of the consultation included introducing more greenery and tree shading around existing buildings and embedding the library as a welcoming reception space for the Lower and Junior Schools.

Working together on net zero

alma-nac worked with sustainability consultant and services engineers Max Fordham to develop a comprehensive net zero carbon environmental strategy for the library that balances a fabric-first approach with a high level of operational energy efficiency, ensuring that the building is efficient to heat in winter and easy to keep cool in summer.

Achieving a BREEAM Excellent rating, the Library combines low-embodied carbon and Passivhaus principles with energy modelling, renewable technologies and a creative approach to the services design to reduce operational carbon. Thermally enhanced facades, an airtight building envelope and natural cross-ventilation are complemented by an intelligent Building Management System developed in close consultation with the school’s Head of Sustainability, Katy Mills, and Sustainability Data Analyst, Luke George.

From the outset of the Lower School project, Dulwich College recognised that ambitious adaptive reuse of the site’s structurally sound but outdated post-war buildings was key to its sustainability goals. The focus of Phase 2 of the project will be to complete the campus by transforming the concrete and steel framed Austin Vernon & Partners buildings with new functionality and life.
